Door Screen Series

Primary Use –highest security protection, highest glass protection from flying debris, and energy cost savings

Maximum Size -48” x 108-1/2” tall

Frame Composition -made from T5-6063 heavy-duty aluminum

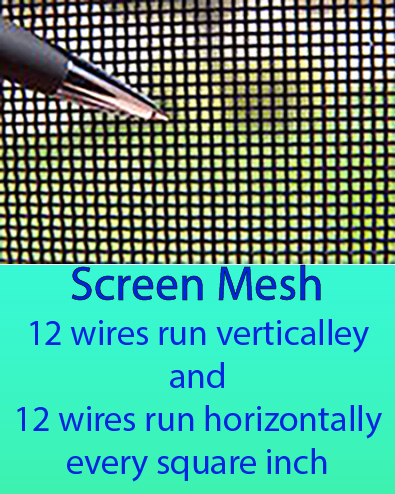

Screen Wire – Mesh is .035″ diameter SST wire woven mesh with 12 x 12 weave (.028″ diameter available)

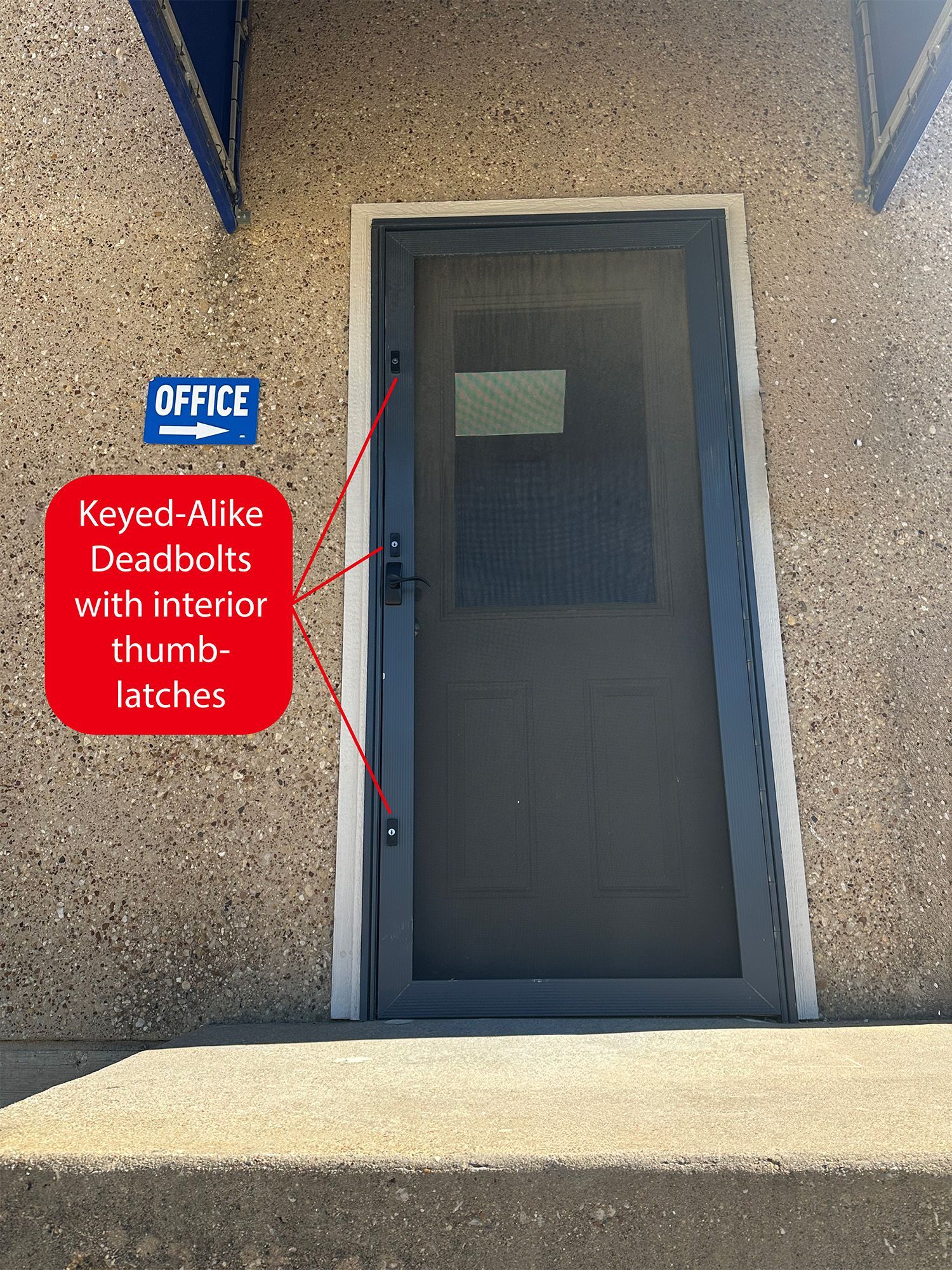

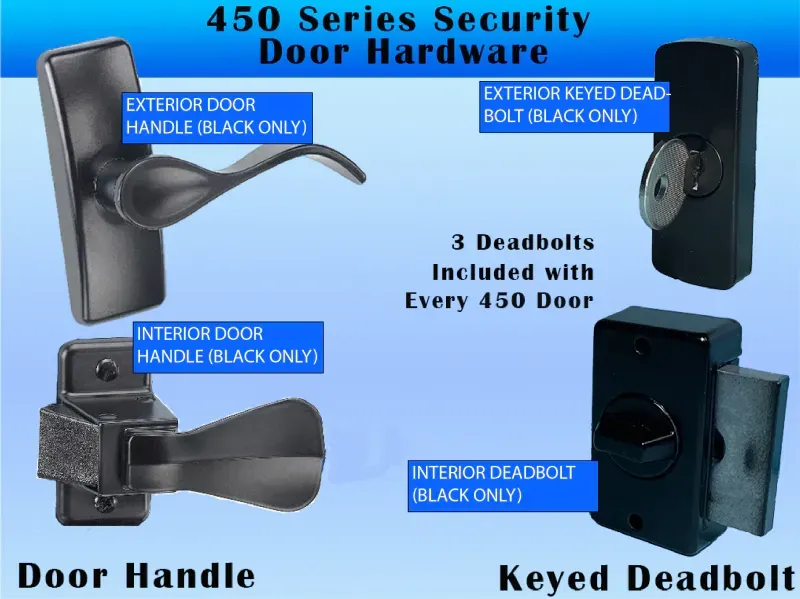

Locking Mechanism – (manual 3-point lock). Storm Door Latch on the outside with keyed deadbolt and thumb latch inside. For additional security, we have added keyed deadbolts at the top and bottom of the door with thumb latches on the inside

Lock Color – Black

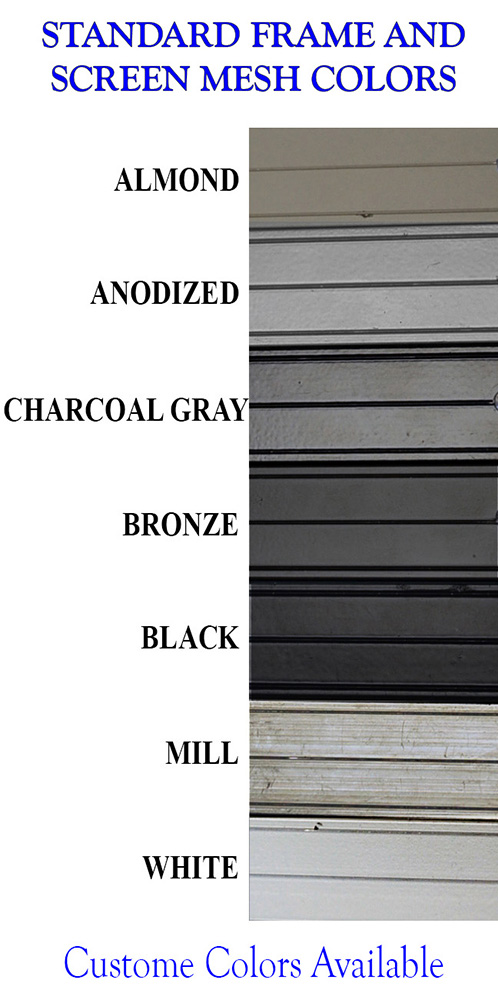

Frame and Screen Mesh Colors –Charcoal Gray, White, Bronze, Anodized, Almond, Black, and Mill (custom colors available)

Energy Efficiency –with .035″ SST wire blocks up to 66% of heat transfer and 68% of ultraviolet rays

Colonial Lite Grids –Available

Snap-on Aluminum Screw Cover Strips –Included

Blast Resistant Rated – No

Primary Use - highest security protection, highest glass protection from flying debris, and energy cost savings

Maximum Size – 82″’ wide by up to 98-1/2” tall

Frame Composition - made from T-6063 heavy-duty aluminum

Screen Wire – Mesh is .035″ diameter SST wire woven mesh with 12 x 12 weave

Locking Mechanism

-Operating Door (manual 3-point lock). Storm Door Latch with keyed deadbolt and thumb latch inside. For additional security, we have added keyed deadbolts at the top and bottom of the door with thumb latches on the inside.

–Fixed Door -Head and foot bolts

Color Options for Lock – Black

Frame and Screen Mesh Colors – Charcoal Gray, White, Bronze, Anodized, Almond, Black, and Mill(custom colors available)

Energy Efficiency – with .035″ diameter SST wire blocks up to 66% of heat transfer and 68% of ultraviolet rays

Colonial Lite Grids – Available

Snap-on Aluminum Screw Cover Strips – Yes

Blast Resistant Rated – No

Primary Use -highest security protection, highest glass protection from flying debris, and energy cost savings

Maximum Size -142″ wide x 102″ tall

Frame Composition -made from T-6063 heavy-duty aluminum reinforced at strategic points for maximum strength.

Screen Wire – Mesh is .035″ diameter SST wire woven mesh with 12 x 12 weave

Locking Mechanism – Internal Lock only

Frame and Screen Mesh Colors –Charcoal Gray, White, Bronze, Anodized, Almond, Black, and Mill (custom colors available)

Energy Efficiency –with .035″ SST wire blocks up to 66% of heat transfer and 68% of ultraviolet rays

Colonial Lite Grids –Available

Snap-on Aluminum Screw Cover Strips – Available

Blast Resistant Rated – No

Primary Use –highest security protection, highest glass protection from flying debris, and energy cost savings

Frame Composition -made from T-6063 heavy-duty aluminum reinforced at strategic points for maximum strength.(300 window screen frame sections)

Frame Shape -extruded aluminum available in rectangular, archtop, round top, trapezoid, and cathedral, and custom shapes available.

Screen Wire – made from .035″ diameter SST wire woven mesh with 12 x 12 weave (.028″ diameter available).

Pivoting for Opening -300 screens can pivot in either direction.

Latch and Locking Mechanism

-External Latch System –Bit-Locks are single point keyed latches on the opposite side of the hinged side.

Frame and Screen Mesh Colors –Charcoal Gray, White, Bronze, Anodized, Almond, Black, and Mill (custom colors available)

Energy Efficiency –with .035″ diameter SST wire blocks up to 66% of heat transfer and 68% of ultraviolet rays.

Colonial Lite grids –Available

Snap-on aluminum screw cover strips –Yes

Blast Resistant Rating –Yes
