Window Screen Series

Primary Use  –highest security protection, highest glass protection from flying debris, and energy cost savings

Frame Composition -made from T5-6063 heavy-duty aluminum reinforced at strategic points for maximum strength. (300 window screen frame section)

Frame Shape -extruded aluminum available in rectangular, archtop, round top, trapezoid, and cathedral shapes with custom shapes available.

Screen Wire – made from .035″ diameter SST wire with 12 x 12 weave (.028″ diameter available).

Pivoting for Opening -300 screens can pivot from top, bottom, left, or right (fixed screens available).

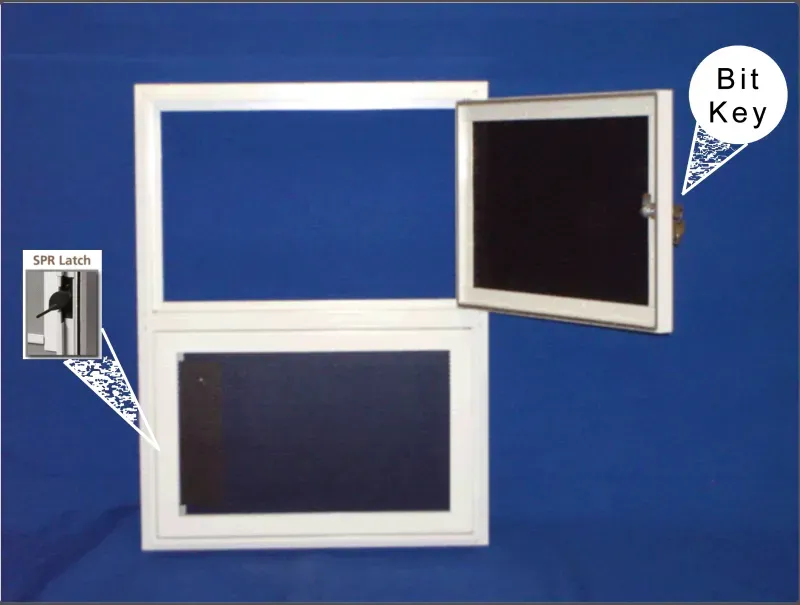

–Internal Latching Systems –EZ-Open/SPR-200 -spring-loaded (ADA Approved) single-point release.

–External Latch System –Bit-Locks are single point keyed latches on the opposite side of the hinged side.

Frame and Screen Mesh Powder Coat Colors –Charcoal Gray, White, Bronze, Anodized, Almond, Black, and Mill (custom colors available)

Energy Efficiency –with .035″ diameter SST wire blocks up to 66% of heat transfer and 68% of ultraviolet rays.

Colonial Lite Grids –available

Snap-On Aluminum Screw-Cover Strips –Yes

Blast Resistant Rating –Yes

Primary Use –moderate security protection, excellent glass protection from flying debris, and energy cost savings

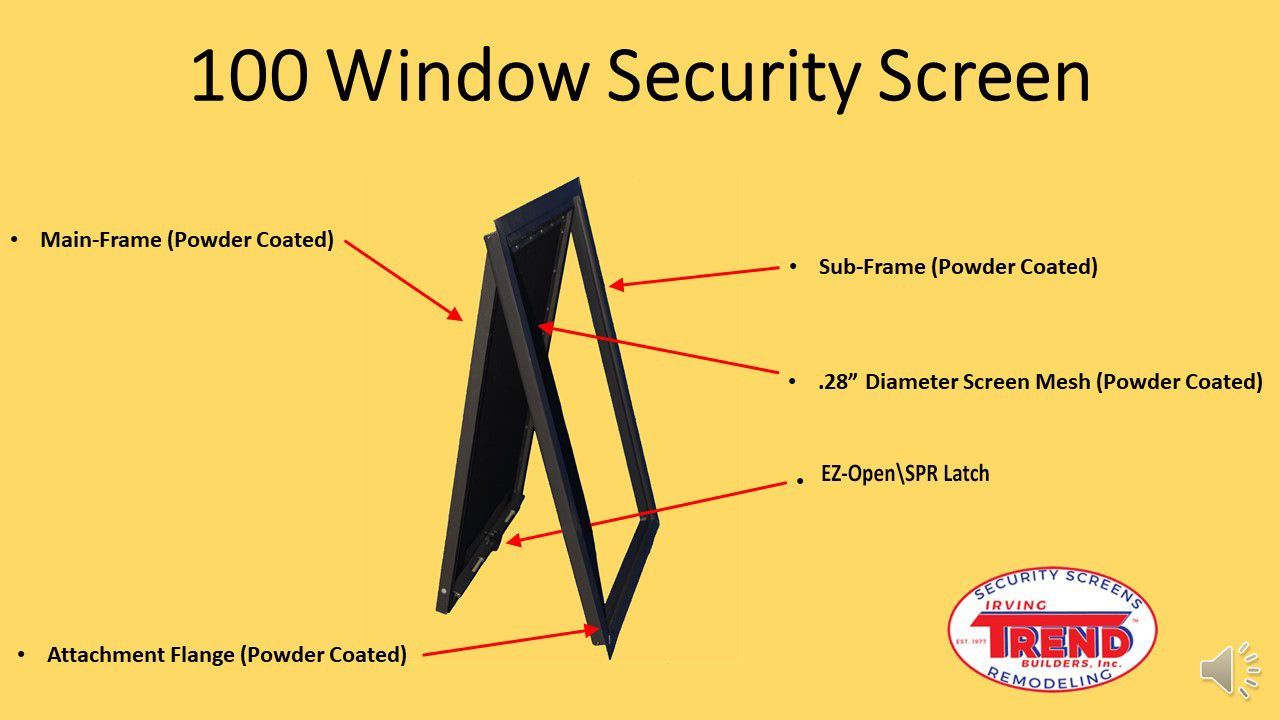

Frame Composition -made from T5-6063 moderate-duty aluminum reinforced at strategic points for maximum strength. (anatomy of the 100 series Security Screen)

Frame Shape -extruded aluminum frames are only available in rectangular shapes

Screen Wire – made from .028″ diameter stainless steel (SST) wire woven mesh with 12 x 12 weave (.035″ diameter available).

Pivoting for Opening -100 screens can pivot from the top, bottom, left, or right (fixed screens available).

–Internal Latching Systems –EZ-Open/SPR-200 -spring-loaded (ADA Approved) single-point release or barrel bolt

–External Latch System –Bit-Locks are single point keyed latches on the opposite side of the hinged side.

Frame and Screen Mesh Powder Coat Colors –Charcoal Gray, White, Bronze, Anodized, Almond, Black, Mill (custom colors available)

Energy Efficiency –The 100 screens have not been tested for heat transfer or ultraviolet rays blocking.

Colonial Lite Grids –available

Snap-On Aluminum Screw Cover Strips –Yes

Blast Resistant rating -No

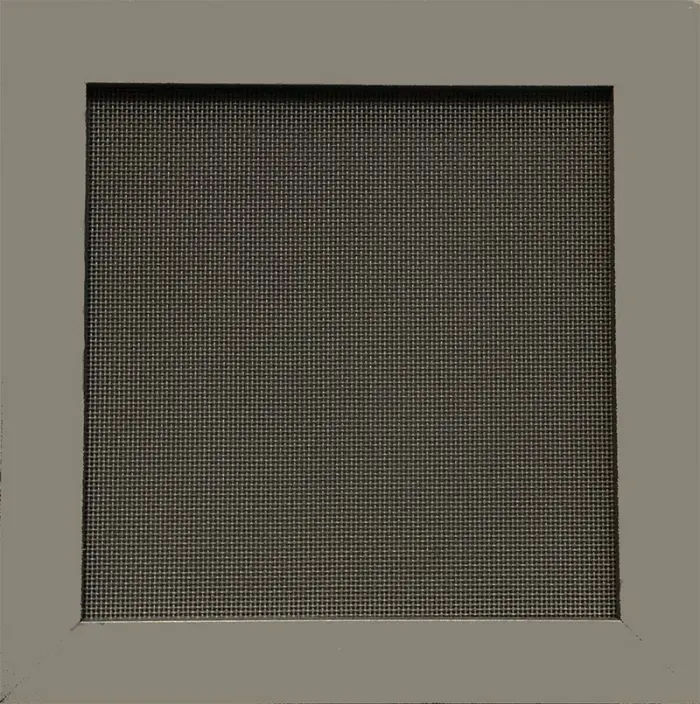

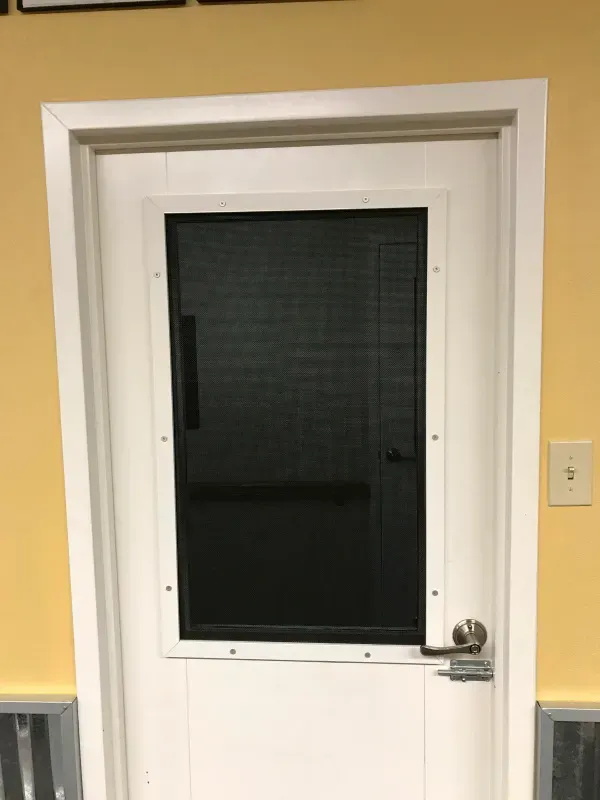

Primary Use –glass protection, and energy cost savings

Frame Composition -light gauge aluminum frame

Frame Shape -rectangular shapes only

Screen Wire – made from .028″ diameter SST wire woven mesh with 12 x 12 weave (.035″ diameter wire available)

Pivoting for Opening -Fixed Only (installed with tamper-resistant color-matched screws)

Latch and Locking Mechanism Options –Not applicable

Frame and Screen Mesh Colors –Charcoal Gray, White, Bronze, Anodized, Almond, Black, and Mill (custom colors available)

Energy Efficiency –The 600 screens have not been tested for heat transfer or ultraviolet rays blocking.

Colonial Lite Grids –Not available

Snap-On Aluminum Screw-Cover Strips –No

Blast Resistant Rating -Not Tested
